Public Lighting Control Center

Spain

Key Features

  • Project start: Jan­u­ary 2011
  • Project com­ple­tion: April 2012
  • iGrid prod­ucts involved: iCon­trol SCADA – Light­ing Edi­tion
  • Num­ber of RTUs/MV sub­sta­tions: Up to 150 RTUs and PLCs
  • Num­ber of data points: Up to 2.000 I/O points
  • Pro­to­cols: IEC60870‑5–104 and Mod­busTCP

Project description

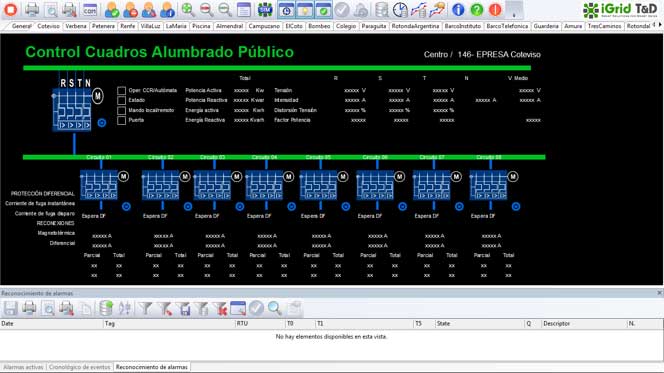

The project inte­grat­ed exist­ing con­trol cen­ters from dif­fer­ent light­ing con­trol ven­dors in just one con­trol cen­ter using the iCon­trol SCADA Light­ing Edi­tion, con­trol­ling 150 RTUs con­nect­ed to near­ly 2,000 light points.

The project had two key tasks:

  • Con­cen­trate the infor­ma­tion from dif­fer­ent ven­dors and pro­to­cols (IEC60870‑5–104 and Mod­busTCP) in the same SCADA sys­tem
  • Cal­cu­late hun­dreds of math­e­mat­i­cal for­mu­las to obtain the desired data and improve the ener­gy effi­cien­cy

The deployed SCADA sys­tem is based on a client/server archi­tec­ture with two simul­ta­ne­ous oper­a­tors. It also fea­tures the abil­i­ty to send SMS mes­sages and emails in accor­dance with the gen­er­at­ed alarms and events to alert the main­te­nance staff imme­di­ate­ly.
