iGW-VM – Substation Automation Software

Any hard­ware runs smooth­ly with the scal­able and easy-to-use iGW-VM automa­tion software.
  • Port­ing to Lin­ux & Win­dows plat­forms, from servers to embed­ded systems
  • Redun­dant hot-stand­by archi­tec­ture
  • Watch­dog and RTC functionalities
  • Extreme­ly scal­able and adapt­able to any par­tic­u­lar present and future needs
  • Sim­ple con­fig­u­ra­tion with iConf tool
  • Secured with IEC62351 cyber secu­ri­ty standard
  • PLC automa­tion with IEC61131‑3
  • Numer­ous com­mu­ni­ca­tion con­fig­u­ra­tions to freely adjust to sub­sta­tion requirements
  • Sim­ple inte­gra­tion of I/O mod­ules from the iRTU family

Our sub­sta­tion automa­tion soft­ware has been devel­oped to con­trol and mon­i­tor any sub­sta­tion (HV & MV). It sup­ports all archi­tec­tures based on Win­dows or Lin­ux servers, as well as embed­ded con­trollers, act­ing as a sub­sta­tion gate­way, bay con­troller, RTU or com­mu­ni­ca­tion front-end for SCADA systems.

The data col­lec­tion from meters, pro­tec­tion relays, and oth­er IEDs can be man­aged using any pro­to­col, inl­cud­ing IEC 60870–5, IEC 61850 (MMS/GOOSE), DNP3, DLMS, Mod­bus or Pro­come. Fur­ther, the iGW-VM can also process and trans­fer the data to one or mul­ti­ple con­trol cen­ters and SCADA mas­ter sta­tions using upstream pro­to­cols such as IEC 104, IEC 101, TASE2.0/ ICCP (IEC 60870–6), IEC 61850–90‑2, DNP3, and Mod­bus RTU/TCP.

Amongst its state-of-the-art fea­tures, the iGW-VM is able to pro­vide load shed­ding func­tion­al­i­ties, high accu­ra­cy time stamping/processing (<1ms accu­ra­cy) as well as straight­for­ward PLC programming/automation accord­ing to IEC 61131–3 via the free iConf tool.

Jump to Tech Fea­tures

Jump to Spec­i­fi­ca­tions

Jump to Ref­er­ences

Applications & Functions

iGW Communication Front-end

  • Up to thou­sands of IED
  • Up to 150.000 Tags
  • Con­nectable to 8 mas­ter stations

Substation Automation

  • Main Sub­sta­tion Gateway
  • Pro­to­col Converter
  • Sub­sta­tion PLC
  • Trans­former Front-end
  • Switchgear Front-end
  • Sub­sta­tion Automa­tion Hub

Generation Plant Monitoring & Control

  • Smart Meter Gateway
  • Meter Man­age­ment Sys­tem Front-End
  • Pro­to­col Converter
  • Load Curve Col­lec­tion & Transfer



Features & Functionalities

N

Full real-time sub­sta­tion equip­ment monitoring

N

Full IEC 61850 GOOSE & MMS integration

N

Inter­nal PLC based on IEC 61131–3

N

Full range of protocols

N

Alarms & events generation

N

High-accu­ra­cy time syn­chro­niza­tion via PTP & NTP, plus inter­nal RTC

N

PRP & HSR red­Box (redun­dan­cy box)

N

Live, remote and web based con­fig­u­ra­tion & data access

N

Local data stor­age freely expand­able with inte­grat­ed SD card

N

DLMS meter data col­lec­tion, man­age­ment, con­ver­sion and transfer

N

Col­lec­tion of all kinds of elec­tri­cal data from var­i­ous meters at once

HV Sub­sta­tion Automation
MV Grid Automation
Automa­tion with IEC 61850
Switchgears & Transformers
Smart Meter Gateway
Pro­to­col Conversion

iGW-VM as Substation Gateway

Exam­ple schema of iGW-VM oper­at­ing as sub­sta­tion gate­way with hot-stand­by redundancy

Technical Features

Hot-Standby Redundancy

In a hot-stand­by archi­tec­ture, the active iGW con­tin­u­ous­ly feeds the record­ed data to the redun­dant stand­by iGW to ensure that the new­ly active iGW has all the his­tor­i­cal infor­ma­tion (no data loss) when the switchover occurs.

If the active RTU detects that any IED is not able to com­mu­ni­cate, it tries to access the IED via the hot-stand­by RTU, which (in the case there was a con­nec­tion prob­lem) can pass the data to the active RTU, act­ing as a ser­i­al server.

IEC61131‑3 PLC Automation

Thanks to its inter­nal PLC based on IEC 61131–3, the iRTU can pro­vide pow­er­ful automa­tion and con­trol func­tion­al­i­ties.
For exam­ple, you can eas­i­ly reuse pro­grams on dif­fer­ent projects, run mul­ti­ple PLC instances simul­ta­ne­ous­ly or use trig­gered vari­ables for con­trol com­mands and set points. It also allows to run hot pro­gram updates, stop PLC exe­cu­tions depend­ing on the qual­i­ty of select­ed PLC inputs and debug PLCs online, either cycle-by-cycle or step-by-step.

The iRTU has a high exe­cu­tion speed – a 2000 ST line pro­gram takes less than 3ms.

Cyber Security – IEC 62351

iGrid enforces sev­er­al lay­ers of secu­ri­ty mea­sures guid­ed by the propo­si­tions of the IEC 62531 stan­dard to pro­tect its devices from all kinds of threats.

The iGW-VM fea­tures Role Based Access Con­trol (RBAC) to avoid intrin­sic risks such as secu­ri­ty holes and unau­tho­rized actions by authen­ti­cat­ed users.
In addi­tion to end-to-end encryp­tions via TSL/SSL, HTTPS, SSH and stan­dard pro­ce­dures for VPNs (e.g. Open­VPN), its com­mu­ni­ca­tion can also be secured with net­work con­trol meth­ods such as fire­walls, IP fil­ters, ACL or TCP port blocks.

IEC 61850 MMS

The iGWlite can be used as a sim­ple link between seri­al­ly con­nect­ed phys­i­cal devices and log­i­cal IEC 61850 devices as it can be sim­ply con­fig­ured to map any sig­nal from all sorts of data mod­els onto IEC 61850 log­i­cal nodes, whilst also pro­vid­ing IEEE1588 / PTP time synchronization.

Thanks to its full iGrid pro­to­col stack, the iGWlite can con­vert any stan­dard or lega­cy pro­to­col such as IEC 60870–5‑103, SPAbus, Mod­bus, DLMS to IEC61850, mak­ing it com­pat­i­ble with hun­dreds of vendors.

Communication Protocols

The iGW was designed to use a high num­ber of pro­to­cols and com­mu­ni­cate with sev­er­al con­trol cen­ters at once.

The stack includes new­er pro­to­cols such as IEC 61850 MMS or GOOSE (A lev­el cer­ti­fied by DNV-KEMA), but also old­er stan­dard and pro­pri­etary pro­to­cols such as ModbusRTU/TCP, Profibus, SpaBus, Mlink or Pro­come. Oth­er sup­port­ed down­stream pro­to­cols for meters and pro­tec­tion relays are IEC 60870–5‑102/-103, IEC 62056–21 and DLMS, where­as upstream pro­to­cols for con­trol cen­ters also include IEC 60870–5‑101/-104 or DNP3.0 serial/TCP.

IP Networking

The iGW is equipped with trans­par­ent TCP bridg­ing and con­fig­urable IP rout­ing to tun­nel any ser­i­al pro­to­col (such as Mod­bus) over a TCP/IP con­nec­tion and facil­i­tate the data trans­fer through com­plex IP networks.

Its VLAN and VPN sup­port allow to improve the network’s per­for­mance, sim­pli­fy­ing its traf­fic man­age­ment, design and deploy­ment and also help­ing to secure com­mu­ni­ca­tions through par­tic­u­lar­ly haz­ardous networks.

iConf – One Configuration Tool for Everything

iGrid prod­ucts, includ­ing devices oper­at­ing with iGW-VM can all be local­ly and remote­ly con­fig­ured and main­tained via USB or Eth­er­net, using iGrid’s free iConf tool or stan­dard soft­ware tools such as tel­net. Alter­na­tive­ly, con­fig­u­ra­tion data can be up– or down­loaded via USB flash dri­ve, FTP man­ag­er or iConf.

We rec­om­mend using the iConf tool because it has been specif­i­cal­ly devel­oped for elec­tri­cal appli­ca­tions, sav­ing you lots of time and mon­ey through­out the con­trol sys­tem set-up and main­te­nance tasks, whilst also min­i­miz­ing your project risks.

Device configuration and PLC Programming Automation Software
Online Mode (iConf)
Logical Expressions (iConf)
Function Block Diagrams (iConf)

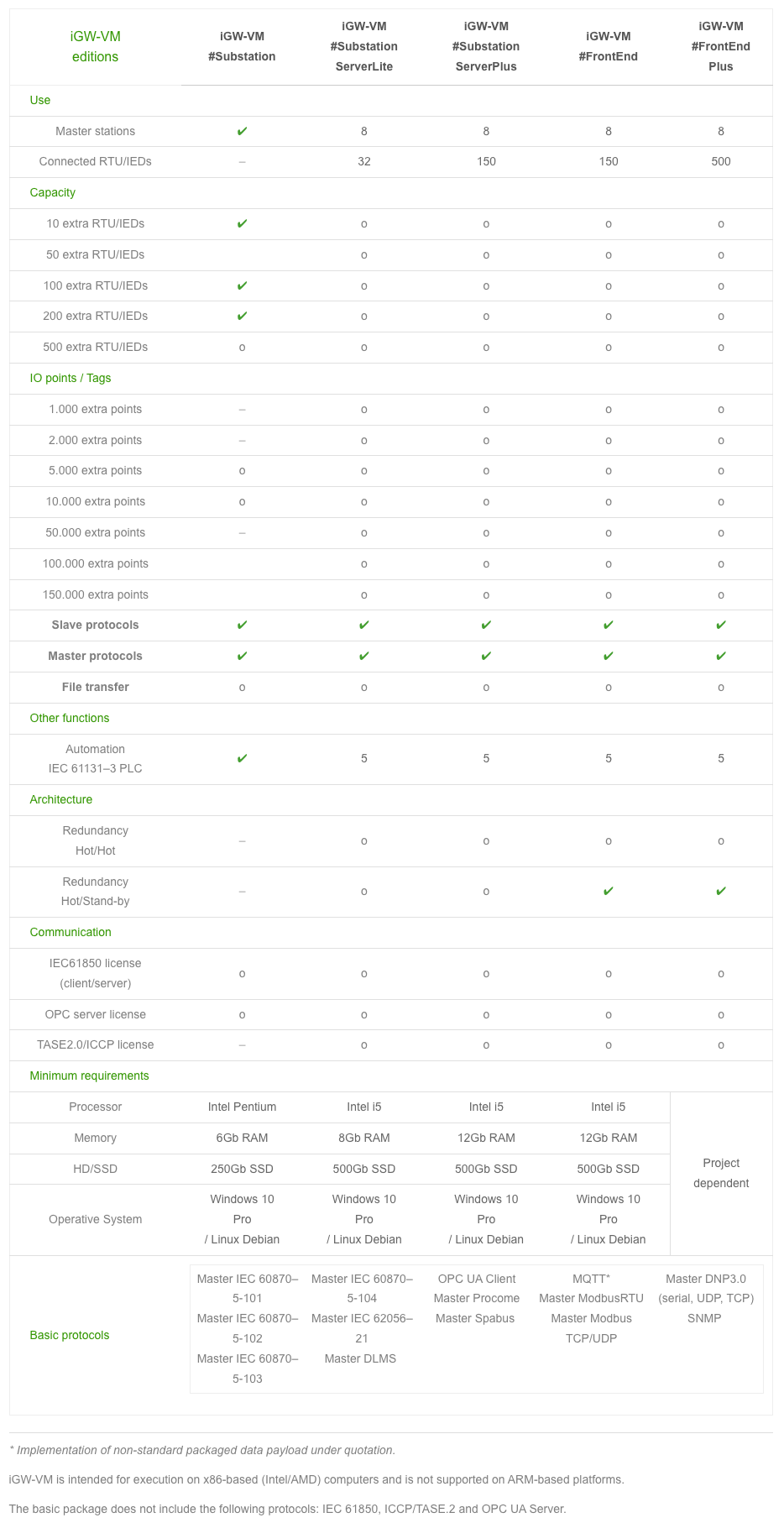

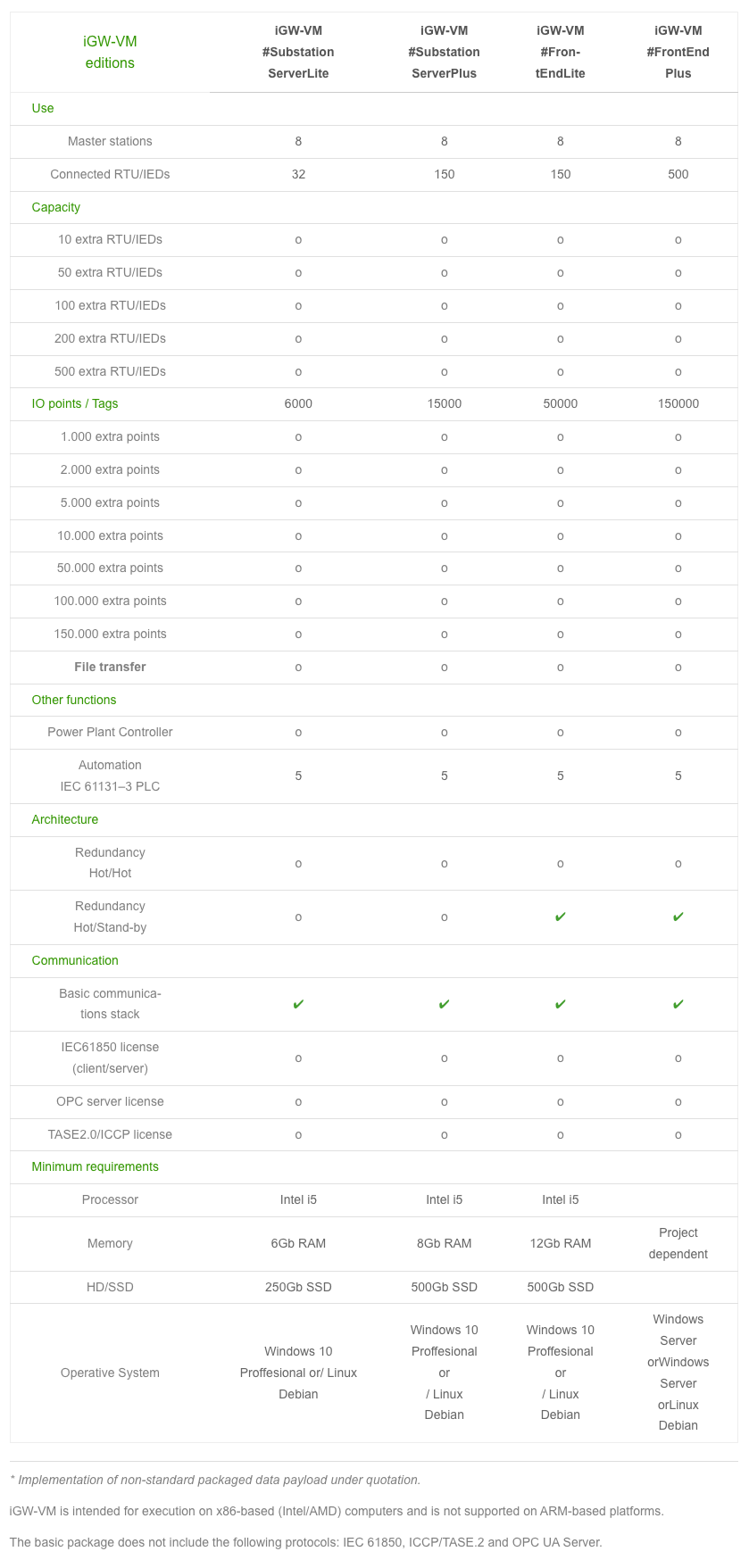

Specifications

Protocol Stack

Master/Slave IEC 60870–5‑101
Mas­ter IEC 60870–5‑102
Mas­ter IEC 60870–5‑103
Master/Slave IEC 60870–5‑104
Master/Slave DNP3.0 (ser­i­al, UDP, TCP)
Master/Slave Mod­bus­R­TU
Mas­ter Profibus DP Master/Slave
Mod­bus TCP/UDP and JBUS (mas­ter)
Mas­ter IEC 62056–21
Mas­ter DLMS
Mas­ter Spabus, Mlink, Procome
SNMP Agent/Manager
IEC 61850 MMS Client/Server
IEC 61850 GOOSE Publisher/Subscriber

General Characteristics

Easy con­fig­u­ra­tion with iConf tool
Com­mand con­sole with full infor­ma­tion on pack­et exchanges, on all avail­able protocols
Local or remote main­te­nance via USB or Eth­er­net port
Oper­at­ing Sys­tem OS Lin­ux or Win­dows based servers
Com­mand con­sole with full infor­ma­tion on pack­et exchanges, on all avail­able protocols
Inter­nal web serv­er, allow­ing real time mon­i­tor­ing of the sys­tem and all its inter­nal parameters
Com­mu­ni­ca­tion Ports Eth­er­net and ser­i­al port management

iGComms Software

LUA lan­guage & iConf can be used to cre­ate sim­ple and com­plex log­ic and math­e­mat­i­cal expressions
Secu­ri­ty IEC 62351–3 and IEC 62351–5 sup­port, includ­ing TLS/SSL, SSH and VPN connections
IEC 61131–3 automa­tion log­ic and PLC pro­gram­ming, with LD, FBD, ST and SFC editor
Redun­dan­cy iGComms includes redun­dant archi­tec­tures using hot-stand­by configuration
COMTRADE file trans­fer from IEC 61850 IEDs to con­trol center
I/O mod­ules sim­ple inte­gra­tion of iRTUe
Licens­ing USB license based on num­ber of con­nec­tions, tags and functionalities

RTC & Time Synchronization

Real-time Clock (RTC) with 1.5 ppm drift and microsec­ond res­o­lu­tion timestamp
Serv­er NTP, IEC 60870–5‑101, IEC 60870–5‑104, DNP3.0, PTP
Client IEEE1588(PTP), SNTP, IEC 60870–5‑101, IEC 60870–5‑102, IEC 60870–5‑103, IEC 60870–5‑104 DNP3.0, DLMS, Spabus, Mlink, Pro­come and Profibus DP
Down­load Brochure

This Is What You Get

when you combine powerful software with optimized and flexible hardware.
iGW – The Same Software in Its Favorite Case

The iGW is a pow­er­ful and reli­able sub­sta­tion gate­way, able to run either in stand­alone or redun­dant modes, car­ry­ing 4 ser­i­al ports and an (option­al) embed­ded Eth­er­net switch for 2 addi­tion­al Eth­er­net ports (total of 4).

iGWlite – The “Lite” Gateway

The iGWlite comes with 1 Eth­er­net, 1 RS485/RS422 and an option­al RS-232 port (cop­per or fiber) or a 2G/3G/4G modem – tak­ing lit­tle space on a DIN-Rail, but still employ­ing the full iGrid pro­to­col stack.

iRTU – The Gateway with Integrated I/Os

The iRTU is an intel­li­gent and scal­able bay con­troller with inter­nal and con­fig­urable I/O capa­bil­i­ties for direct data acqui­si­tion, pow­er­ful pro­to­col con­ver­sion (incl. IEC 61850), high-pre­ci­sion time­stamp­ing and an option­al embed­ded Eth­er­net switch.
