iControl SCADA — Automation Made Simple

SCADA for Sub­sta­tion Automa­tion, Pow­er Dis­tri­b­u­tion Sys­tems & Auto­mat­ed Gen­er­a­tion Control
  • Secured, high-per­for­mance and easy-to-use SCADA HMI con­trol soft­ware with all rec­om­mend­ed fea­tures for elec­tric­i­ty dis­tri­b­u­tion sys­tems and beyond
  • iCon­trol’s open approach is adapt­able to any net­work schema or topol­o­gy, designed to fit all lev­els, from sim­ple stand­alone sys­tems to com­plex redun­dant archi­tec­tures with remote clients and SQL data storage
  • iCon­trol SCADA can be eas­i­ly adapt­ed to user or appli­ca­tion pref­er­ences, includ­ing self-defined func­tions, math­e­mat­i­cal expes­sions, botons, graph­i­cal data illus­tra­tions, alarm types and windows
  • Ana­lyze and visu­al­ize real-time and his­toric data at all ends of the pow­er sys­tem on a sin­gle plat­form or eas­i­ly trans­fer the data to a 3rd par­ty data­base for exter­nal analyses
  • Gen­er­ate cus­tomized reports, trig­gered peri­od­i­cal­ly or by any kind of event/alarm
  • Man­age mul­ti­ple com­mu­ni­ca­tion pro­to­cols at the same time – from sim­ple Mod­bus to IEC 61850 (MMS & GOOSE), both mas­ter and slave, includ­ing com­mon pro­to­cols for con­trol cen­ter com­mu­ni­ca­tion, such as IEC 60870–5‑104/101, DNP3.0 or OPC UA
  • Access the SCADA in real-time from any­where via inter­net brows­er using the iCon­trol web view­er, block­ing any unwanted/dangerous activ­i­ty with inte­grat­ed safe­ty measures
  • Ben­e­fit from state-of-the-art func­tion­al­i­ties for elec­tri­cal dis­tri­b­u­tion net­works, includ­ing high-pre­ci­sion time-syn­chro­niza­tion, auto­mat­ic line col­or­ing and PLC programming.

Super­vi­so­ry Con­trol and Data Acqui­si­tion (SCADA) sys­tems are fun­da­men­tal for the automa­tion and local/remote con­trol of gen­er­a­tion plants and sub­sta­tions. iCon­trol SCADA soft­ware is adapt­able to any appli­ca­tion require­ments, from small sub­sta­tions and pow­er plants to full medi­um volt­age grids, always work­ing in the same environment.

Our SCADA automa­tion sys­tems pro­vide an intel­li­gent HMI for real-time mon­i­tor­ing and con­trol com­bined with advanced data acqui­si­tion, regard­less of the com­mu­ni­ca­tion pro­to­col, the RTU to con­nect to, or the archi­tec­ture (stand­alone, client/server or redun­dant) in place.

iCon­trol SCADA also guar­an­tees com­plete inter­op­er­abil­i­ty and unites all impor­tant func­tion­al­i­ties for elec­tric­i­ty dis­tri­b­u­tion net­works, such as sin­gle-line dia­grams, play­back event repro­duc­tion, qual­i­ty of ser­vice cal­cu­la­tions (SAIDI & SAIFI ratios), tem­plates or SQL data­base and alarm/event man­age­ment. It was specif­i­cal­ly designed for the ener­gy sec­tor, allow­ing us to cre­ate a sim­ple and intu­itive inter­face for the oper­a­tion and con­fig­u­ra­tion of sub­sta­tion automa­tion sys­tems (SAS) and dis­tri­b­u­tion con­trol centers.

Jump to Tech Fea­tures

Jump to Spec­i­fi­ca­tions

Jump to Ref­er­ences

Applications & Functions

MV Grid Automation

MV Grid & Substation Automation Platform

  • Con­trol Cen­ter Plat­form for Util­i­ties and DSOs
  • SCADA & gate­way sys­tem for MV substations
N

Auto­mat­ic flow or volt­age based line coloring

N

Qual­i­ty of ser­vice (SAIFI/ SAIDI) calculations

N

Live, remote and web based data access

N

Work­sta­tion for engi­neer­ing projects

N

Full gate­way capabilities

HV Sub­sta­tion Automation

HV Substation Automation SCADA

  • Advanced HV Sub­sta­tion Automa­tion SCADA
  • Local sub­sta­tion HMI
  • Web SCADA
N

Auto­mat­ic flow or volt­age based line coloring

N

GOOSE & MMS IEC 61850 communications

N

Full gate­way and PLC capabilities

N

Advanced Redun­dan­cy & Time Synchronization

PV Plant Control

Power Plant SCADA

  • Pow­er Plant SCADA/ HMI/ Plat­form
  • Auto­mat­ic Gen­er­a­tion Con­trol & PPC Soft­ware
  • Smart Meter Data Col­lec­tion & Conversion
  • Grid Con­nec­tion SCADA
N

Full real-time plant and sub­sta­tion equip­ment mon­i­tor­ing and control

N

Pow­er plant con­trol mod­ule for grid codes and services

N

Con­fig­urable reports, alarms & events generation

N

Use­ful KPIs and gen­er­a­tion forecasts

Gen­er­a­tion Dispatch

Generation Dispatch Control Center

  • Plant Portfolio/ Con­trol Cen­ter Man­age­ment Plat­form with Auto­mat­ic Gen­er­a­tion Con­trol Soft­ware for Ancil­lary Services
N

Full plant and sub­sta­tion equip­ment mon­i­tor­ing and control

N

ICCP / TASE 2 (IEC 60870–6) to com­mu­ni­cate between con­trol centers

N

Pow­er plant con­trol mod­ule for grid codes and services

N

Live, remote and web based sys­tem access

N

Con­fig­urable reports, alarms & events generation

Product Highlights

Single Line Diagram
Edition Mode
iControl graphical schemas
Events Viewer
Function Block Diagrams (iConf)
Logical Expressions (iConf)

Intelligent User Interface

iCon­trol’s smart zoom pro­vides an intel­li­gent overview of the entire grid, show­ing or hid­ing ele­ments accord­ing to the applied the zoom.
Fur­ther­more, the user can eas­i­ly switch between edi­tion and run-time mode, as well as between ener­gy or flow-based bus­bar coloring.

Technical Features

SQL and Reporting

All the infor­ma­tion col­lect­ed and gen­er­at­ed by iCon­trol can be stored in an SQL data­base for sys­tem analy­ses and reporting.

iCon­trol can also gen­er­ate cus­tomiz­able reports by itself, which can be sent to main­te­nance teams or engi­neer­ing departments.

Edition & Runtime Mode

iCon­trol does not require a spe­cial license to build or mod­i­fy a project, but it does require the cor­re­spond­ing user level.

This fea­ture is a big advan­tage dur­ing deploy­ments, as the sys­tem can be mod­i­fied direct­ly on the serv­er, with­out the need of any extra engi­neer­ing ter­mi­nal, and with­out los­ing com­mu­ni­ca­tion with field devices.

Web Viewer & Smart Zoom

iCon­trol Web Viewer

iCon­trol can be mon­i­tored remote­ly via its web appli­ca­tion, allow­ing to review all sin­gle line dia­grams, schemas, list­ings and his­tor­i­cal data comfortably.

Smart Zoom

The iCon­trol smart or declut­ter­ing zoom pro­vides an intel­li­gent, clear overview of the entire grid, show­ing or hid­ing ele­ments accord­ing to the applied the zoom.

IEC61131‑3 PLC Automation

The iCon­trol appli­ca­tion includes PLC automa­tion sequences which can be pro­grammed using the iConf PLC soft­ware, based on the IEC 61131–3 standard.

Client/Server Architecture

iCon­trol can be deployed as a stand­alone sys­tem or in a client/server archi­tec­ture, in which all the infor­ma­tion is gath­ered and stored on the serv­er sta­tion, with one or sev­er­al sys­tem oper­a­tors con­nect­ed to the local­ly or remote­ly acces­si­ble client terminals.

Redundancy

Crit­i­cal sys­tems depend on redun­dan­cy capa­bil­i­ties to ensure the nec­es­sary reli­a­bil­i­ty. With iCon­trol you can add hot-stand­by servers to client/server architectures.

The switchover can either be trig­gered auto­mat­i­cal­ly by the active device or man­u­al­ly by the oper­a­tor. IEDs and iCon­trol clients are always con­nect­ed to both servers, and switched auto­mat­i­cal­ly dur­ing switchover.

Busbar Coloring

Bus­bar col­or­ing or topo­log­ic col­or­ing is a fea­ture that offers auto­mat­ic pow­er line col­or­ing (ALC) based on grid topol­o­gy and volt­age lev­el. The user can assign col­ors to the dif­fer­ent ener­giza­tion sta­tus­es: ener­gized (under pow­er), not ener­gized (not fed), and ground­ed. The lines (bus­bars and con­nec­tions) and graph­i­cal com­po­nents (cir­cuit break­ers, trans­form­ers, iso­la­tors etc.) are then col­ored accordingly.

In the ener­gized case, the lines and ele­ments may be dis­played in two dif­fer­ent modes:

Ener­gy-based – col­or­ing accord­ing to volt­age level.

Flow-based – col­or­ing accord­ing to pow­er flow.

The lat­ter allows dis­tin­guish­ing dif­fer­ent pow­er flows by col­or (one col­or per flow), i.e. dis­play parts of the grid sup­plied by the same incom­ing feed­er with the same color.

Specifications

Signals and Data Presentation

Mul­ti­ple list options to dis­play col­lect­ed information:

  • Sequence of events
  • Active alarms
  • Alarm acknowl­edg­ment
  • His­tor­i­cal events
  • His­to­ry of measurements
Trend charts can be user-defined, sim­ply attached to schemas and viewed by the oper­a­tor at any time dur­ing operation
Sig­nal types sup­port­ed by the SCADA include: dig­i­tal inputs, dig­i­tal com­mands, coun­ters, ana­log inputs and set points

Data Storage and Reporting

CSV file to auto­mat­i­cal­ly store the sequence of events (SOE) of dig­i­tal and ana­log points

SQL all col­lect­ed data can be stored in SQL data bases to facil­i­tate pos­te­ri­or analyses

Report­ing cus­tomized report­ing can be auto­mat­i­cal­ly trig­gered by an event/alarm, or peri­od­i­cal­ly gen­er­at­ed. Reports are stored on the serv­er and can be sent by email

Protocol Stack

Master/Slave IEC 60870–5‑101
Mas­ter IEC 60870–5‑102
Mas­ter IEC 60870–5‑103
Master/Slave IEC 60870–5‑104
Master/Slave DNP3.0 (ser­i­al, UDP, TCP)
Master/Slave Mod­bus­R­TU
Mas­ter Profibus DP Master/Slave
Mod­bus TCP/UDP and JBUS (mas­ter)
Mas­ter IEC 62056–21
Mas­ter DLMS
Mas­ter Spabus, Mlink, Procome
SNMP Agent/Manager
IEC 61850 MMS Client/Server
IEC 61850 GOOSE Publisher/Subscriber

Simple Configuration with iConf

iConf has been specif­i­cal­ly devel­oped for elec­tri­cal appli­ca­tions, sav­ing you lots of time and mon­ey through­out the con­trol sys­tem set-up and main­te­nance tasks, whilst also min­i­miz­ing your project risks. Upload and down­load your con­fig­u­ra­tions, import or scan SCL files (61850) and cre­ate your own tem­plates.

iGComms Software Application

Secu­ri­ty IEC 62351–3 and IEC 62351–5 sup­port, includ­ing TLS/SSL, SSH and VPN connections
IEC61131‑3 automa­tion log­ic and PLC pro­gram­ming, with LD, FBD, ST and SFC editor
LUA lan­guage can be used to cre­ate sim­ple and com­plex log­ic and math­e­mat­i­cal expressions

Architecture

Redun­dan­cy deploy­able on a hot-stand­by con­fig­u­ra­tion, with redun­dant servers and data bases to improve sys­tem reliability

Client/Server the iCon­trol serv­er col­lects & stores all field data with all sup­port­ed pro­to­cols.
The iCon­trol Client is used to oper­ate the sys­tem and pro­vides the lists and graphs.

RTUs & IEDs only com­mu­ni­cate with the serv­er, while the oper­a­tion con­sole can be dis­trib­uted on sev­er­al clients, using native appli­ca­tions or web browsers.

Stand­alone iCon­trol runs on win­dows com­put­ers and has all the func­tion­al­i­ties to man­age an entire project: com­mu­ni­ca­tion, oper­a­tion, edi­tion & storage.

General Characteristics

Sim­ple con­fig­u­ra­tion and main­te­nance with our free iConf tool.
Com­mand con­sole with full pack­et exchange infor­ma­tion, with all avail­able protocols

Quick switch­ing between the edi­tion and run­time modes with­out inter­rupt­ing the operation

Web view­er with iCon­trol you can dis­play all the SCADA infor­ma­tion (includ­ing schemas, list­ings and trends) on a web browser

Mul­ti­lin­gual eas­i­ly trans­lat­able to any lan­guage and alphabet

Low resource con­sumer, exe­cutable on any com­put­er using Win­dows or Win­dows Server

iControl as Substation HMI, local SCADA and Gateway

Exam­plary schema of a sub­sta­tion with two redun­dant Eth­er­net LANs using iCon­trol as sub­sta­tion SCADA and gateway

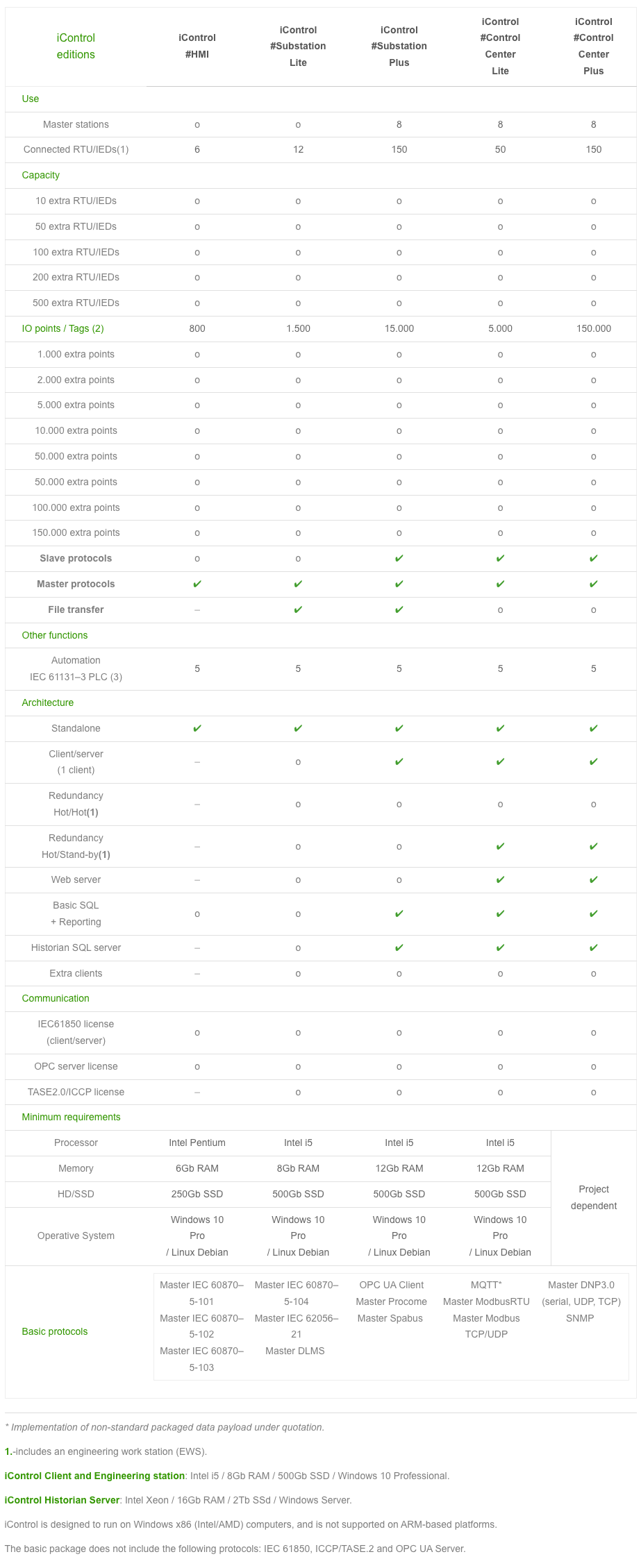

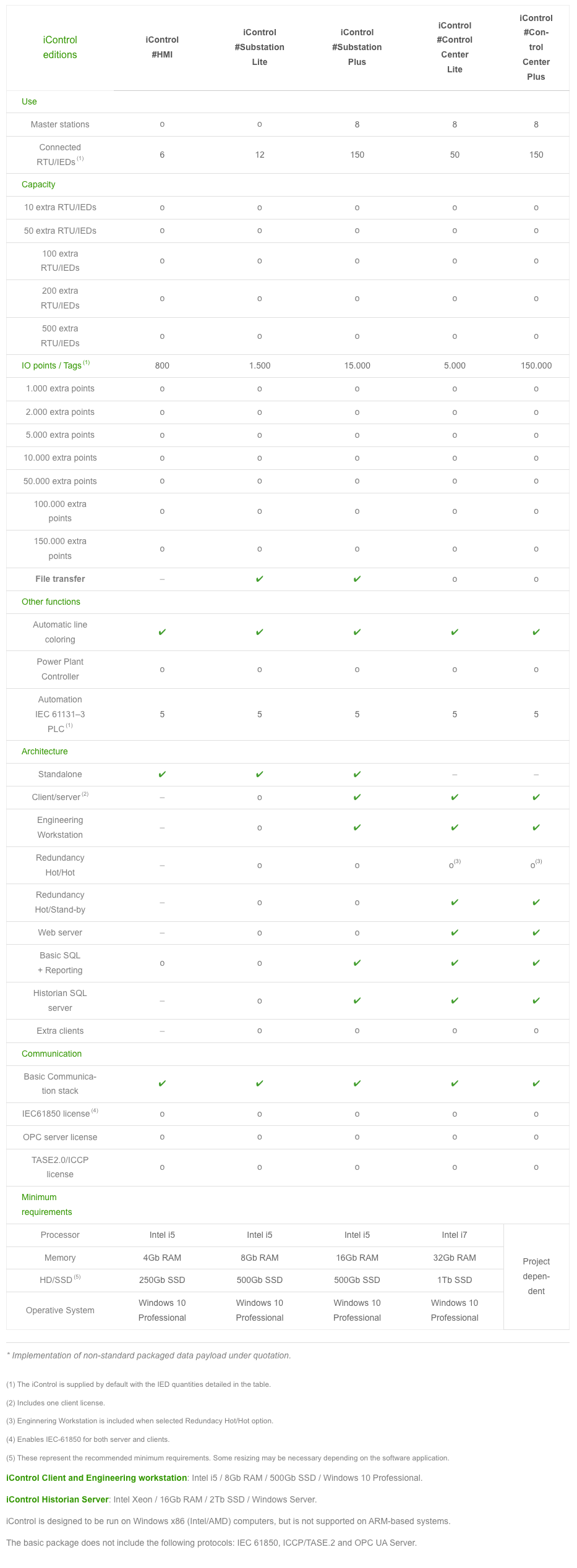

License Overview

● Includ­ed feature

○ Option­al feature

Con­tact iGrid T&D for
oth­er configurations

 HMI SA
Lite		 SA
Plus		 CC
Lite		 CC
Smart		 CC
Plus
Data Stor­age
CSV Data Storage ● ● ● ● ● ●
SQL event log­ging + advanced reporting ○ ● ● ● ●
iCon­trol Web server ○ ○ ● ● ●
Main­te­nance
E‑mail alarms ● ● ● ● ● ●
SMS alarms (needs an exter­nal SMS system) ● ● ●
Num­ber of IEDs/ Mas­ter Sta­tions
and IO Points
Up to 6 IEDs/ 750 IO  (for HMI iCon­trol Edition) ●
Up to 32 IEDs / 6.000 IO ●
Up to 150 IEDs / 3 mas­ter stations/ 15.000 IO   ●
Up to 150 IEDs/ 3 mas­ter stations/ 6.000 IO     ●
Up to 500 IEDs/ 8 mas­ter stations/ 15.000 IO     ●
>500 IEDs / >150.000 IO     ○
Com­mu­ni­ca­tion Protocols
Master/Slave IEC60870‑5–101
Master/Slave IEC60870‑5–102
Master/Slave IEC60870‑5–103
Master/Slave IEC60870‑5–104
Master/Slave Mod­bus­R­TU
Master/Slave ModbusTCP/UDP
Master/Slave DNP3.0 Mas­ter JBUS
Mas­ter DLMS
Mas­ter Profibus­DP
Mas­ter Pro­come
Mas­ter IEC62056-21
Master/Slave SNMP		 ● ● ● ●
Client/Server IEC61850 MMS ○ ○ ○ ○ ○ ○
Publisher/Subscriber IEC61850 GOOSE ○ ○ ○ ○ ○ ○
File trans­fer ○ ○ ○ ○ ○
TASE2.0 / ICCP / IEC 60870–6 ○ ○ ○
OPC UA client ○ ○ ○ ○ ○ ○
PLC Automa­tion and
Bus­bar Coloring
PLC Automa­tion   ● ● ● ● ●
Auto­mat­ic Line Coloring ● ● ● ● ● ●
Exten­sion Options
Up to 2500 IO points ○
Up to 15.000 I/O points ○ ○ ○
Addi­tion­al float­ing client ○ ○ ○ ○ ○
Sys­tem Architecture
Stand­alone ● ● ●
Client/server archi­tec­ture:
Serv­er + 1 client		 ○ ● ●
Redun­dan­cy: main and
hot-stand­by servers + 1 client		   ● ●
Redun­dan­cy: main and
hot-stand­by servers + 5 clients		     ●
Down­load Brochure

iControl SCADA References

Solar PV Plants Remote Monitoring and Control Center

Solar PV Plants Remote Monitoring and Control Center

Substation Automation System with Modbus RTU, IEC 104 and DNP3 (Thailand)

Substation Automation System with Modbus RTU, IEC 104 and DNP3 (Thailand)

IEC 61850 HV Pilot Substation with IEC 104 Mapping (India)

IEC 61850 HV Pilot Substation with IEC 104 Mapping (India)

IEC 61850 SCADA and RTU in Pilot HV Substation (Italy)

IEC 61850 SCADA and RTU in Pilot HV Substation (Italy)

Communications Control Center (Spain)

Communications Control Center (Spain)

Public Lighting Control Center with Modbus and IEC 104 (Spain)

Public Lighting Control Center with Modbus and IEC 104 (Spain)

SAS Interconnecting Multivendor Control Centers — DNP3, Modbus RTU & IEC 104 (Thailand)

SAS Interconnecting Multivendor Control Centers — DNP3, Modbus RTU & IEC 104 (Thailand)

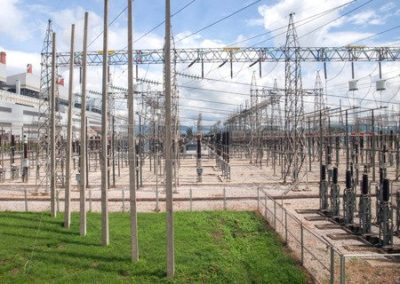

HV Substation Automation System (Thailand)

HV Substation Automation System (Thailand)

HV Substation Automation SCADA with Redundancy (Thailand)

HV Substation Automation SCADA with Redundancy (Thailand)

HV Substation with Interoperable DNP3.0 SCADA (Argentina)

HV Substation with Interoperable DNP3.0 SCADA (Argentina)

MV Grid Distribution Control Center with IEC 61850 (Spain)

MV Grid Distribution Control Center with IEC 61850 (Spain)

Medium Voltage Grid Distribution Control Center (Argentina)

Medium Voltage Grid Distribution Control Center (Argentina)

High Voltage Substation RTU & SCADA (Middle East)

High Voltage Substation RTU & SCADA (Middle East)

3‑Level SCADA

  • Secure & user-friend­ly con­trol cen­ter plat­form & HMI for entire grids/ utilities
  • Local SCADA for ener­gy sys­tems & facilities
  • Gate­way func­tion­al­i­ties for seam­less oper­a­tion between networks

iControl Download

Please fill out the reg­is­tra­tion form below to down­load the iCon­trol SCADA Demo

    I have read and accept the Pri­va­cy Pol­i­cy*

    iControl Applications

    Sub­sta­tion Automation

    Auto­mat­ic Gen­er­a­tion Control

    PV Plant Mon­i­tor­ing and Control

    Wind Park Mon­i­tor­ing and Control

    Hydro­elec­tric Pow­er Plant Control

    Sub­sta­tion Data Acqui­si­tion and Control

    Elec­tric­i­ty Dis­tri­b­u­tion Networks

    Sub­sta­tion Gateway

    MV Grid Con­trol Center

    Gen­er­a­tion Dispatch

    Com­mu­ni­ca­tions Con­trol Center

    Intel­li­gent Load Shedding

    Rail­way Control

    Ener­gy Man­age­ment System

    MV Grid Distribution Control Center

    In this project, iCon­trol is based on a client/server archi­tec­ture with 4 oper­a­tors con­trol­ling 4,000 mul­ti­ven­dor RTUs via IEC60870‑5–104, IEC60870‑5–101 and DNP3.0, through the pub­lic GPRS net­work, in the 25kV dis­tri­b­u­tion grid of Buenos Aires.

    PV Plants Monitoring & Control Center

    In this project, iCon­trol is used to remote­ly con­trol and super­vise over 100 pho­to­volta­ic gen­er­a­tion plants around Turkey. Each plant is owned by a dif­fer­ent investor who can access all the infor­ma­tion via web browser.

    HV Substation Automation SCADA

    In this project, iCon­trol com­mu­ni­cates with meters and pro­tec­tion relays from dif­fer­ent man­u­fac­tur­ers using a vari­ety of pro­to­cols such as Mod­bus, IEC60870‑5–103 or IEC61850. iCon­trol reports to the exist­ing con­trol cen­ters via IEC 104 and DNP3.

    Communications Control Center

    In this project iCon­trol was imple­ment­ed as SCADA sys­tem (serv­er with float­ing clients) to super­vise and con­trol all com­mu­ni­ca­tion facil­i­ties (includ­ing radio base sta­tions, com­mu­ni­ca­tion links, UPS sys­tems, and CERs) of a major Span­ish elec­tri­cal util­i­ty  via Mod­bus TCP, IEC 104 and SNMP.

    iControl Web Viewer

    • Dis­plays iCon­trol SCADA in real time via web browser
    • Full­fills all safe­ty require­ments against poten­tial threats
    • Pre­pares and ren­ders the infor­ma­tion for inter­net brows­er connection
    • Spe­cial­ly designed for mon­i­tor­ing the elec­tri­cal grid with­out act­ing on it
    • Based on the open source Node web server
    • iControl’s list­ings, charts, schemas, reports and oper­a­tion zones are also avail­able in iCon­trol Web Viewer.

    How about hardware?

    iGrid T&D prod­ucts are adapt­able devices for an open and flex­i­ble architecture

    iGW-VM – unlimited control

    The freely scal­able iGW-VM sup­ports all archi­tec­tures using Win­dows or Lin­ux, act­ing as a sub­sta­tion gate­way, bay con­troller, RTU or com­mu­ni­ca­tion front-end for SCADA sys­tems. The iGW-VM is thus the per­fect soft­ware choice for projects with a predetermined/preferred hard­ware or a large grid to cov­er (high num­ber of datapoints).

    The All-in-One Gateway

    The iGW‑S pro­vides up to 4 Eth­er­net and 4 ser­i­al ports with an embed­ded Eth­er­net switch, as well as hot stand-by redun­dan­cy fea­tures and the full range of protocols.

    The GW with Internal I/Os

    The iRTU is an intel­li­gent and scal­able bay con­troller with I/O capa­bil­i­ties for direct data acqui­si­tion, embed­ded Eth­er­net switch, and IEC61850 Client and Serv­er capabilities.

    The Slimmest Master Unit

    The iGWlite comes with 1 Eth­er­net, 1 RS485/RS422 and an option­al RS-232 port (cop­per or fiber) or a 2G/3G/4G mode – tak­ing lit­tle space on a DIN-Rail, but still employ­ing the full iGrid pro­to­col stack.

    iRTUe – Remote I/O Expansions

    iGWs and iRTUs can be freely extend­ed by con­nect­ing sev­er­al iRTUe.
    They are IEC 61850 (GOOSE) com­pli­ant and come in many con­fig­u­ra­tions such as 48 DI, 16 relays, 16 AI, 24 DI + 8 relays, 24 DI + 8 AI or 8 relays + 8 AI.

    iRTU — Remote Teleme­try Unit

    iCon­trol SCADA System

    iGW — Sub­sta­tion Gateway

    iRTUe — Remote Exten­sion Units

    iGW-VM — Sub­sta­tion Software

    iGWlite — Com­pact Gateway

    Sub­sta­tion Automa­tion with IEC61850

    HV Sub­sta­tions

    MV Dis­tri­b­u­tion Grids

    Rail­way Automation

    Pro­to­col Conversion

    Smart Meter­ing

    Wind Farm Generation

    Hydro­elec­tric Generation

    Pho­to­voltaics Generation

    Do you need more information?

    We are hap­py to assist you!



    +34 93 502 79 84

    Mon­day to Friday

    08:00h to 17:00h

    Cen­tral Euro­pean Time

      I have read and accept the Pri­va­cy Pol­i­cy*

      All per­son­al data that you sub­mit us via this form will be processed by Data Con­troller IGRID, S.L. and saved into CONTACTS pro­cess­ing activ­i­tie, with the pur­pose of answer­ing your inquiry, via email or phone, and for a lat­er fol­low up. Pro­cess­ing shall be law­ful because you give us your con­sent for these spe­cif­ic pur­pos­es. Your per­son­al data will not be dis­closed to third par­ties unless forced by law. You have right to access to, rec­ti­fy, or delete your per­son­al data, and oth­er rights as explained in our Pri­va­cy Policy
